細節
FEATURES

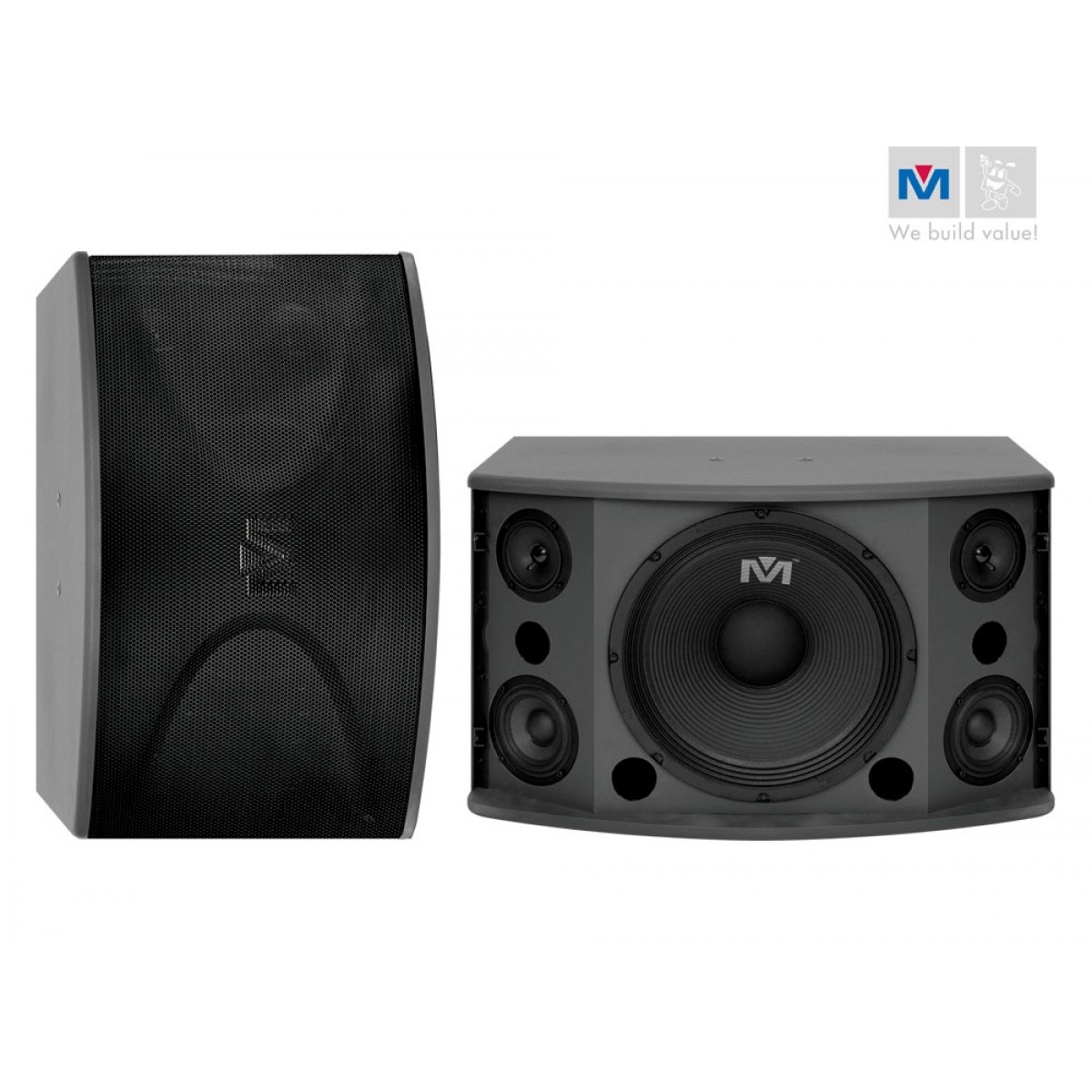

- 3-Way Full Range PVC/Plywood Speaker
- 3”x2 tweeters [paper cone high frequency drivers]
- 4”x2 tweeters [paper cone middle frequency drivers]
- 12”x1 woofer [low frequency woofer]
- High output SPL and sensitivity
- Copper wired voice coil

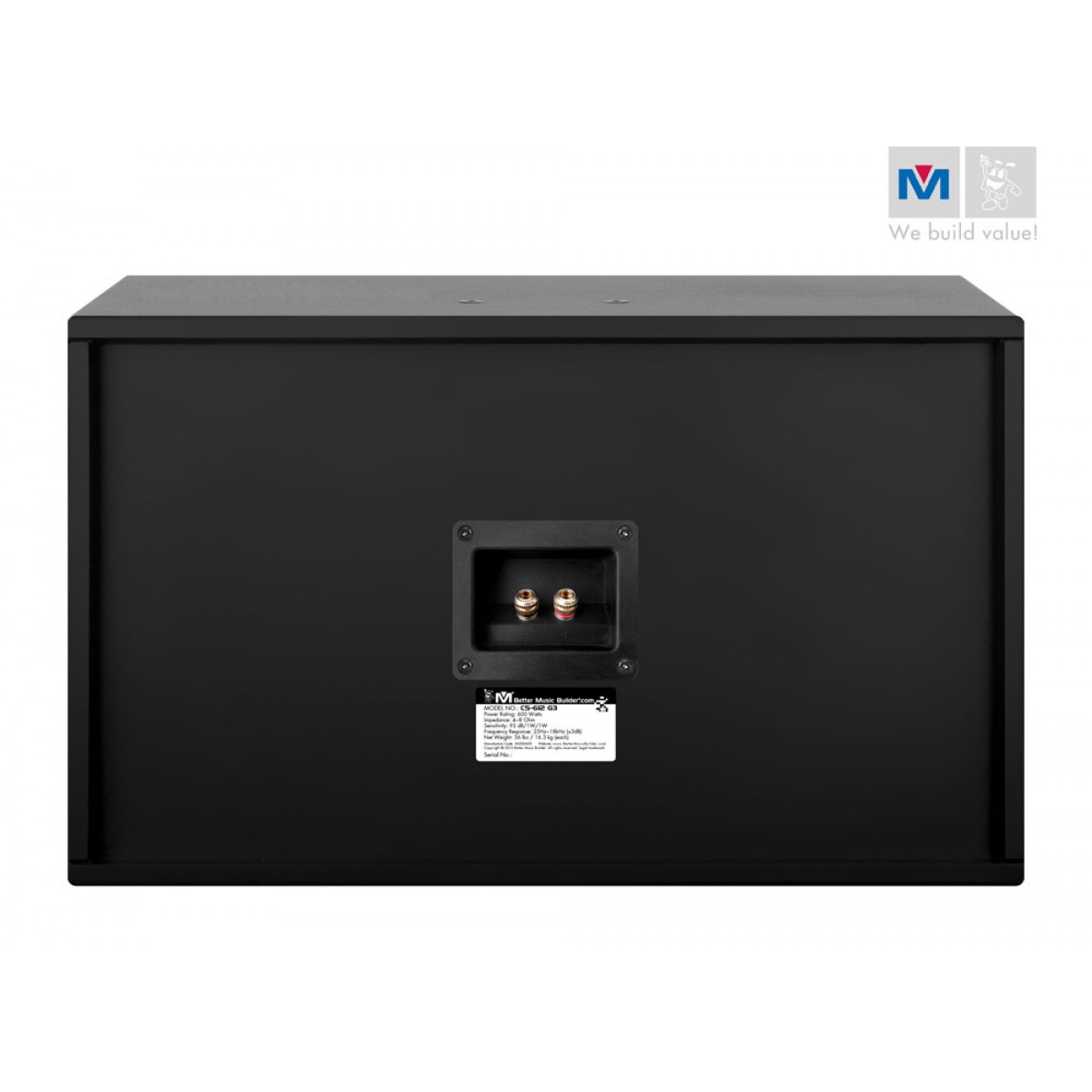

- Speaker input terminal (banana plug or insert type)
- Frequency response 25Hz~18kHz
- Sensitivity 93dB
- Front grill adjustable 180 degrees
- Cabinet design for FOH use
- Flexible and easy-to install configurations (wall, ceiling, under balcony)
TECH SPECS
- Type: Front (3-Way Full Range)
- Max. Power Handling: 600 Watts
- Cabinet Type: PVC, Plywood
- Supported Fixture: Ceiling, Wall Mount, Floor Stand
- Woofer: 12 inches (1 unit)
- Tweeter: 3 inches (2 units: High Frequency x 2) / 4 inches (2 units: Middle Frequency x 2)
- Rated Impedance: 8 ohms
- Frequency Response: 25Hz ~ 18kHz ( ± 3 dB)
- Sensitivity: 93 dB/1W/1M
- Crossover Frequency: LF: 300Hz / HF: 6.3kHz

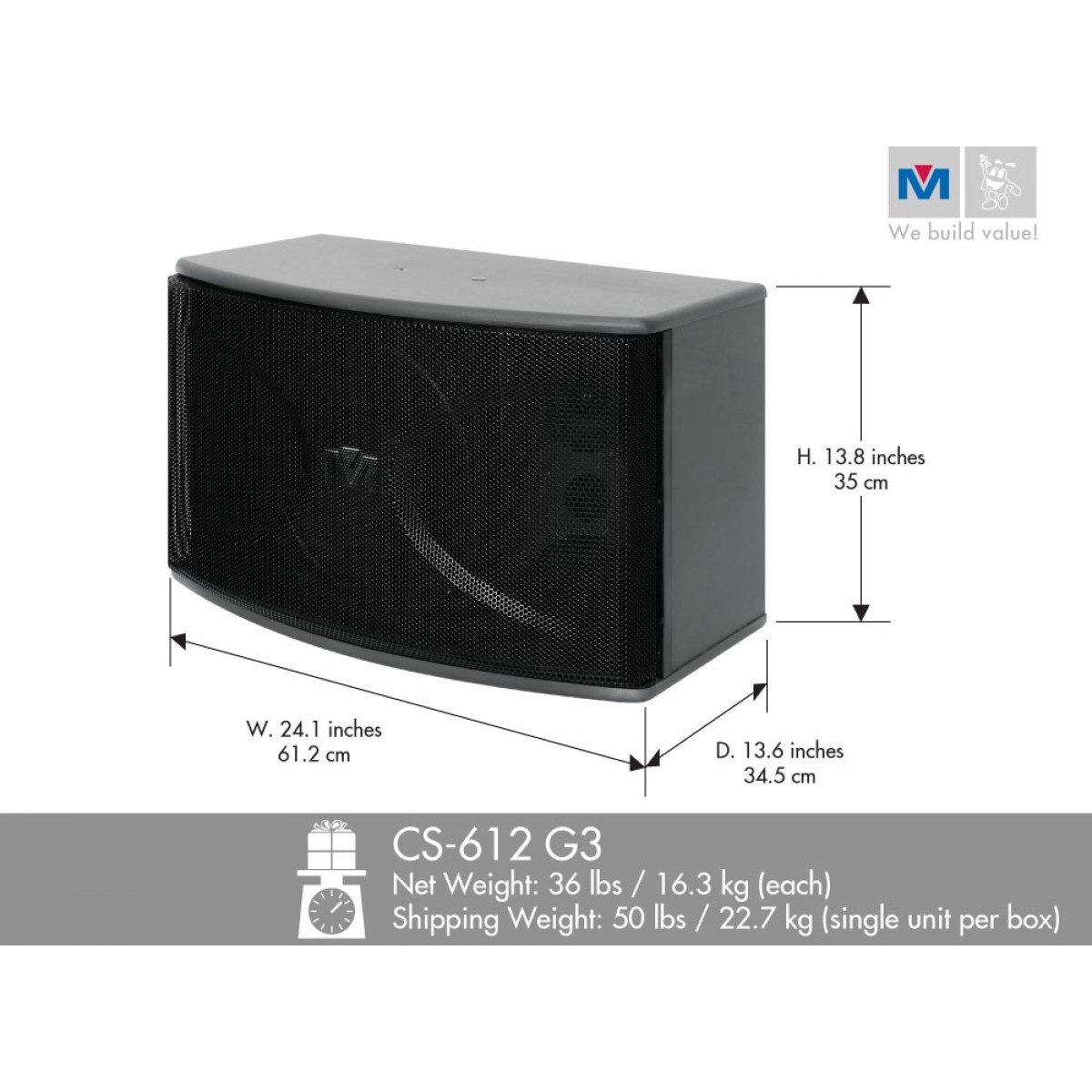

- Dimension (WxHxD): 24.1 x 13.8 x 13.6 in / 61.2 x 35 x 34.5 cm (each)
- Packing Dimension (WxHxD): 17.7 x 28.7 x 16.9 in / 45 x 73 x 43 cm (each)
- Net Weight: 36 Lbs / 16.3 Kg (each)
- Shipping Weight: 50 Lbs / 22.7 Kg (each)
- UPC Code: 743062980223
其他資訊
生產廠家 | Better Music Builder |
---|---|
顏色 | 黑色 |
