DX-588 700W CPU DIGITAL PROCESSOR MIXING AMP W/ BUILT-IN LCD SCREEN 2009 MODEL

FEATURES

• 3.4″ LCD Screen


• DSP (Digital Sound Processor


• Digital Key Control


• 4 kinds of DSP Karaoke effect selection:


  1. Stereo effects


  2. Echo effects


  3. Two effects mixed with fixed echo return times, with no adjusting


  4. Adjust the fix-up effects setup by manufacturer. Parameters cannot be adjusted




• High performance 24-bit multi-engine effect process


• Data in high accuracy including music, vocal and echo effect


• Discrete mic/line input sates with soft mute +48 phantom power


• Ultra-wide bandwidth from 2Hz to 200kHz for open sound


• Music tone with bass from 00dB to maxium 80dB and treble form 00dB to 80dB


• High-performance 24-bit dual-engine Feedback Destroyer


• Single-shot mode automatically searches and attenuates feedback frequencies and locks the filter until manually reset


• Music modulation with 9-step key control and adjustable up and down effects for selection


• Music volume lock is used to lock up the super bass


• 2-way stereo crossover


• 24dB/octave, state variable Linkwitz-Riley filter for precise frequency separation


• Absolutely flat summed amplitude response with zero phase difference


• Separate subwoofer output with independent frequency control form 20Hz to 240Hz to enhance the bass signal


• Center speaker echo effect with ON/OFF for monitoring the center speaker output level without affecting the main speaker output volume


• Adjustment for VOD input signal volume


• Two extra AC power input outlets for additional connection. Maxium voltage is 800 Watts


• Dynamic or condenser microphone limiter effectively protects your equipment from overload


• Microphone reverb (echo) time delay and repeat adjusting for parameters between 30mS to 190mS

TECH SPECS

• Main Output Power RMS: 700 Watts (350W+350W) 8ohm, (650W+650W) 4ohm


• Center Speaker Output Power: 80W~200W (4~8ohm)


• Microphone Input: 5 (Front x 3, Rear x 2)


• Source Input: DVD (Manual), CDG (BGM), VOD (Main)


• Input Function: SAIS (Auto & Manually)


• Video Outputs: 3 (RCA jacks)


• Audio Outputs: 3 (RCA jacks)


• Key Control: 9 steps


• Echo: Digital processor


• Frequency Response



  • Input Sensitivity/Impedance: 20Hz~20kHz +/-3dB


  • Microphone: 5mv~100mv/600ohm


  • Line: 250mv~47kohm






• Music Tone Control



  • Low Frequency (Increase/Attenuation): +/-8dB


  • High Frequency (Increase/Attenuation): +/-8dB






• Microphone Tone Control



  • Low Frequency (Increase/Attenuation): +/-5dB


  • High Frequency (Increase/Attenuation): +/-5dB


  • Audio Tone Control: 0.707V/1kohm






• Output Impedance



  • With Shorten-Circuit Protection: 4~16ohm


  • Recommend Impedance: 8ohm


  • Power Supply: AC 120~240V/50~60Hz


  • Standard Power: AC 120V/~60Hz (North America Market) / AC 220V/~50Hz (Asia or Europe Market)


  • AC Power Consume: AC 120V/800W

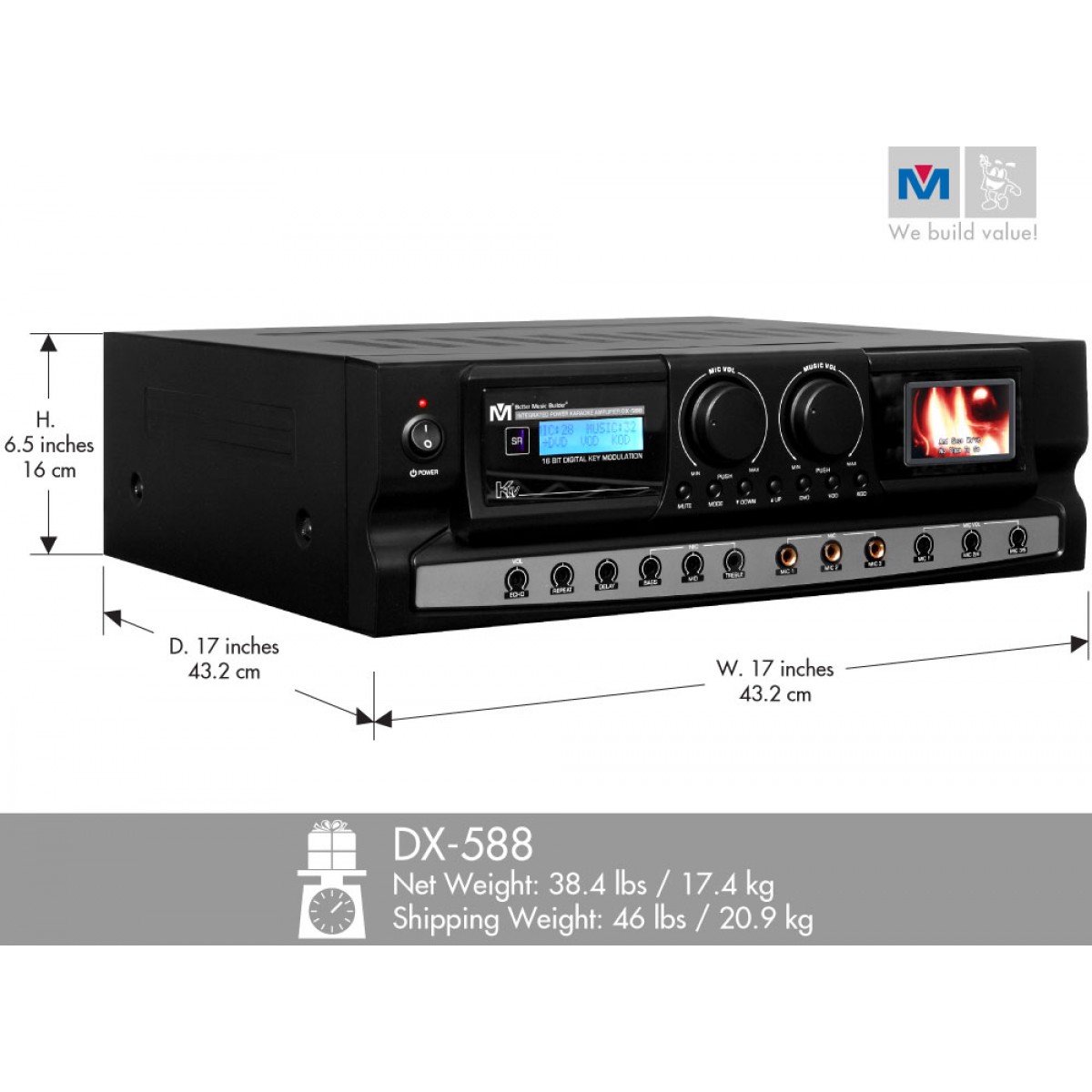

• Dimensions (WxHxD): 17 x 6.5 x 17 in / 43 x 16 x 43 (cm)


• Shipping Weight: 46 Lbs
