高性能
高度集成的、冗余的语音处理资源,来自 JBL 声学技术,水晶般的声音,坚实的低音呈现,最超值的性能。
可靠性
遵循严格控制的制造标准,确保高质量生产。
极简主义
经验丰富的 KTV 工程师和操作员的学习曲线短,因为操作和用户界面设计与 KTV 行业相似。
兼容性
通过提供各种输入和输出格式,满足各种规模的 KTV 设施的需求。
性能
数字输入 | |
接头 |
Optical / Co-axial |
Formats | S/PDIF (24-bit), EIAJ CP-340, IEC 958 |
System Delay | 1.7 ms |
模拟输入 | |
Mic Input | 4 x 1/4" TS |
Music Input | 2 x stereo pairs RCA |
Mic Input Impedance | 8 kΩ |
Music Input Impedance | 10 kΩ |
最大输入电平 | > 18 dBu |

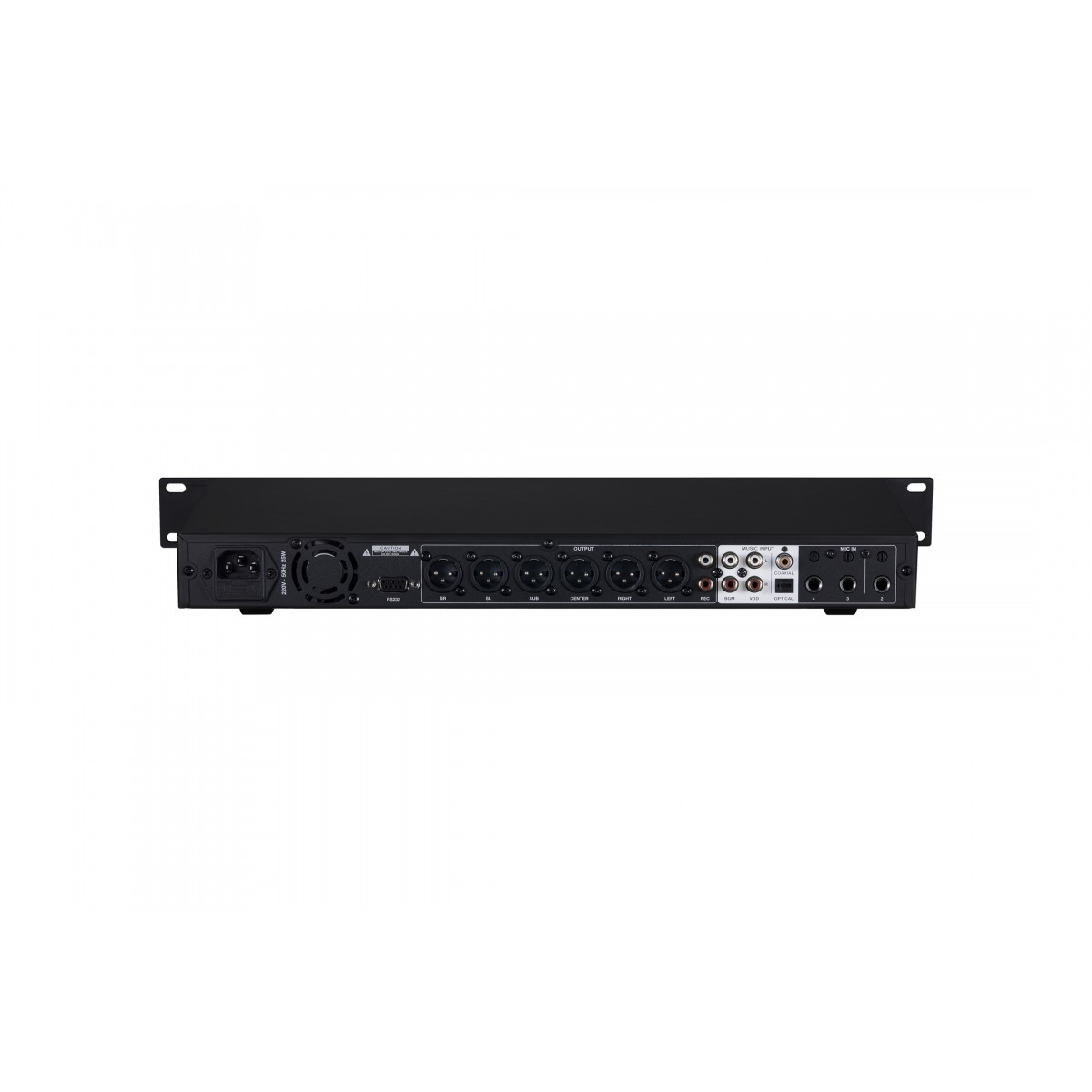

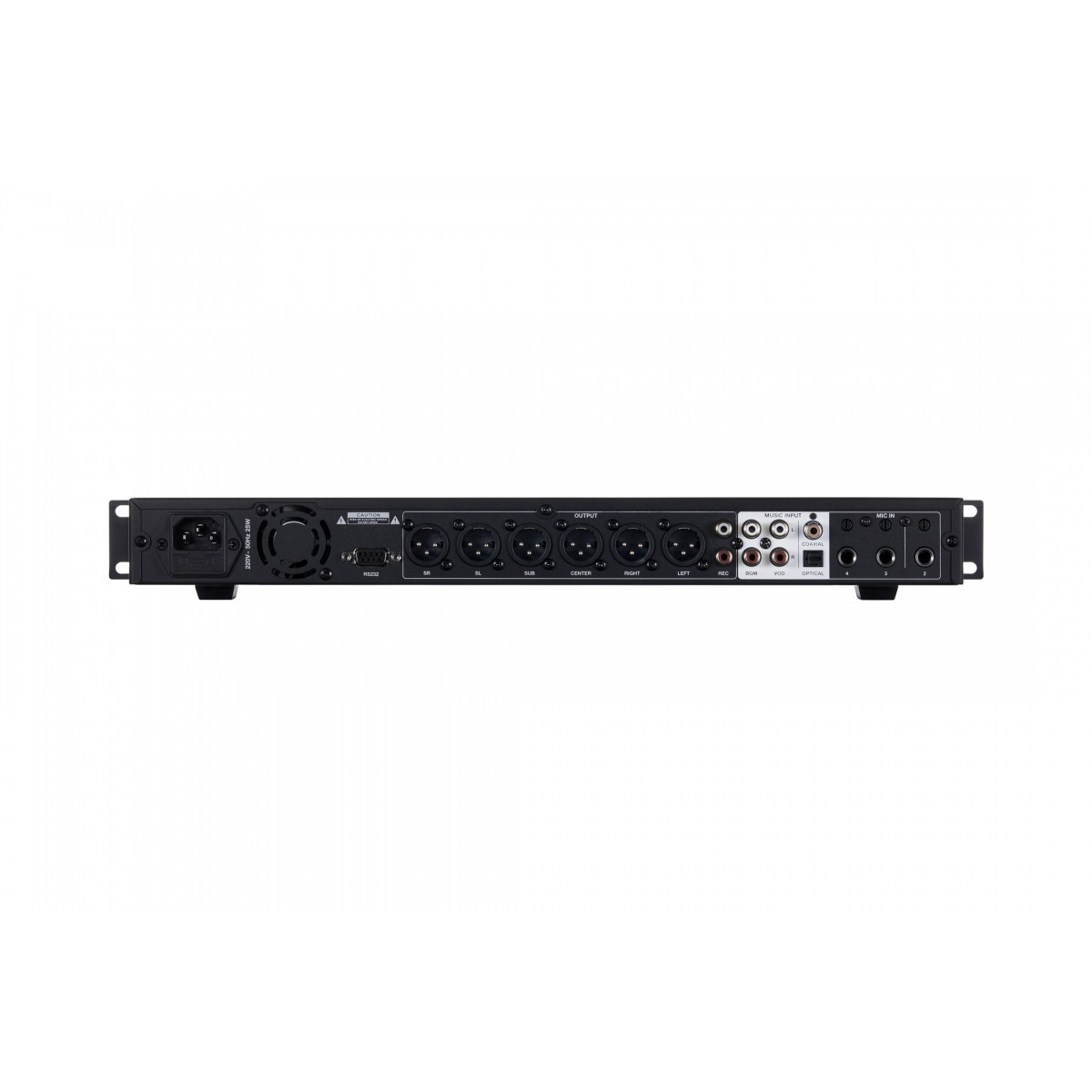

Analog Output | |
Output Connector | 6 x XLR unbalanced |
REC Connector | 1 x stereo pairs RCA |
阻抗 | 100 Ω |
最大输出电平 | > 18 dBu |
THD + N | ≤ 0.5% @ 20 Hz - 20 kHz |
串音 | ≤ -90 dB |
S/N Ratio | > 10 dB @ A-weighted |
噪声层 | < 10 uV @ A-weighted, gain to max |
Environment | |
工作温度 | 0 °C to 45 °C |
存储温度 | -20 °C to 60 °C |
湿度 | Max 90% non-condensing |
控制接口 | |
USB | USB 2.0 Type-B |
RS-232 | DB9 |
General | |

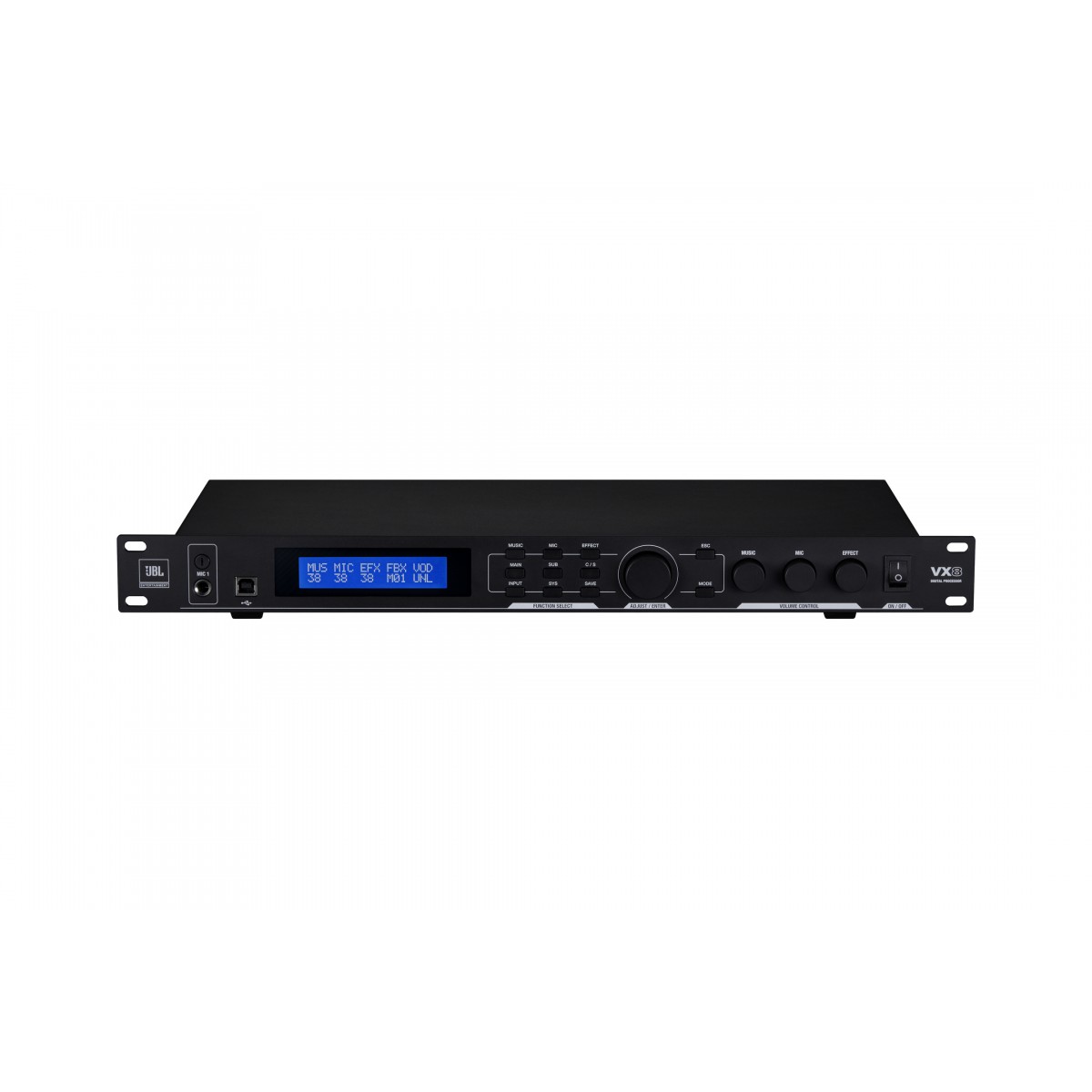

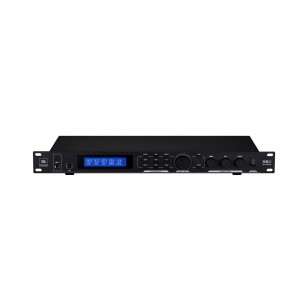

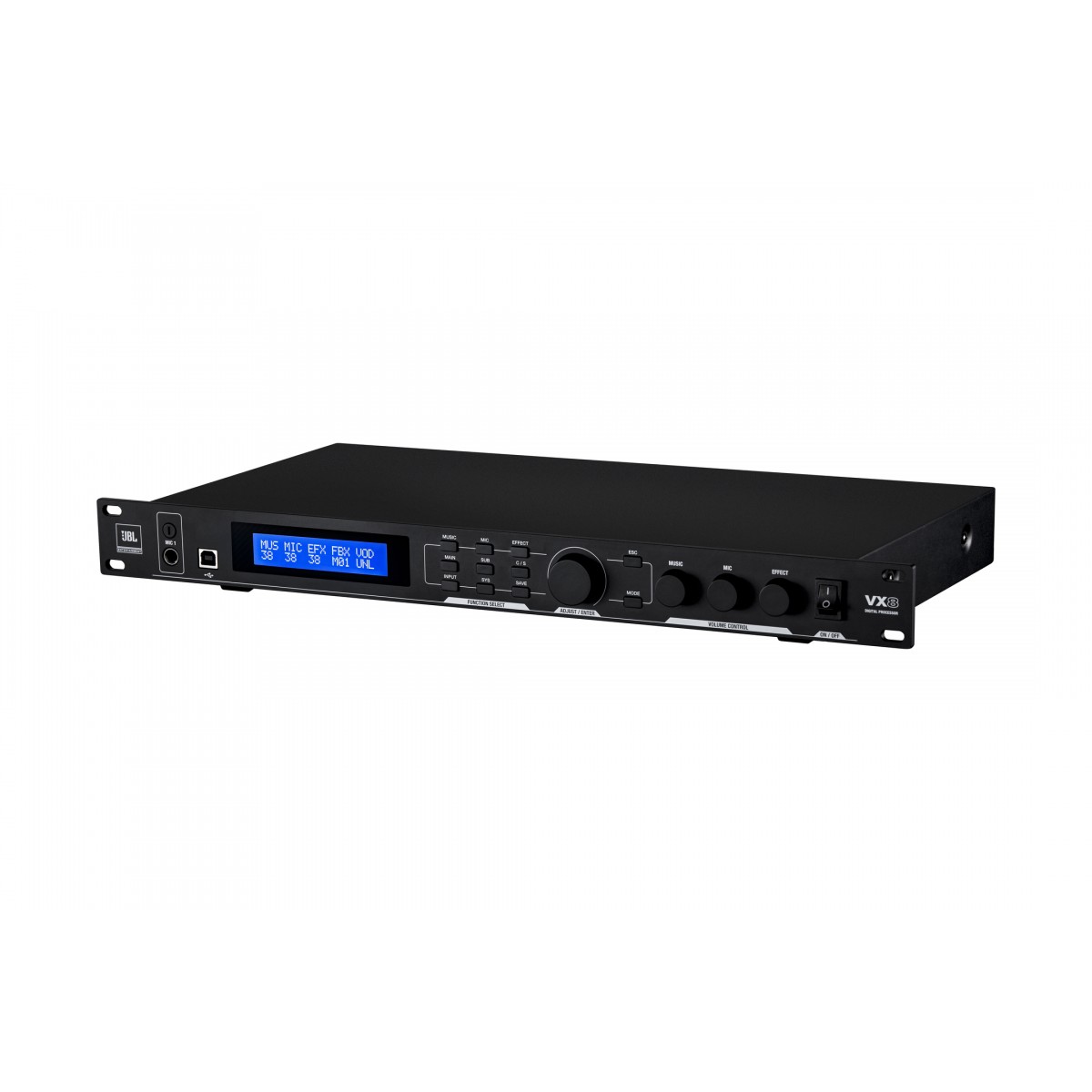

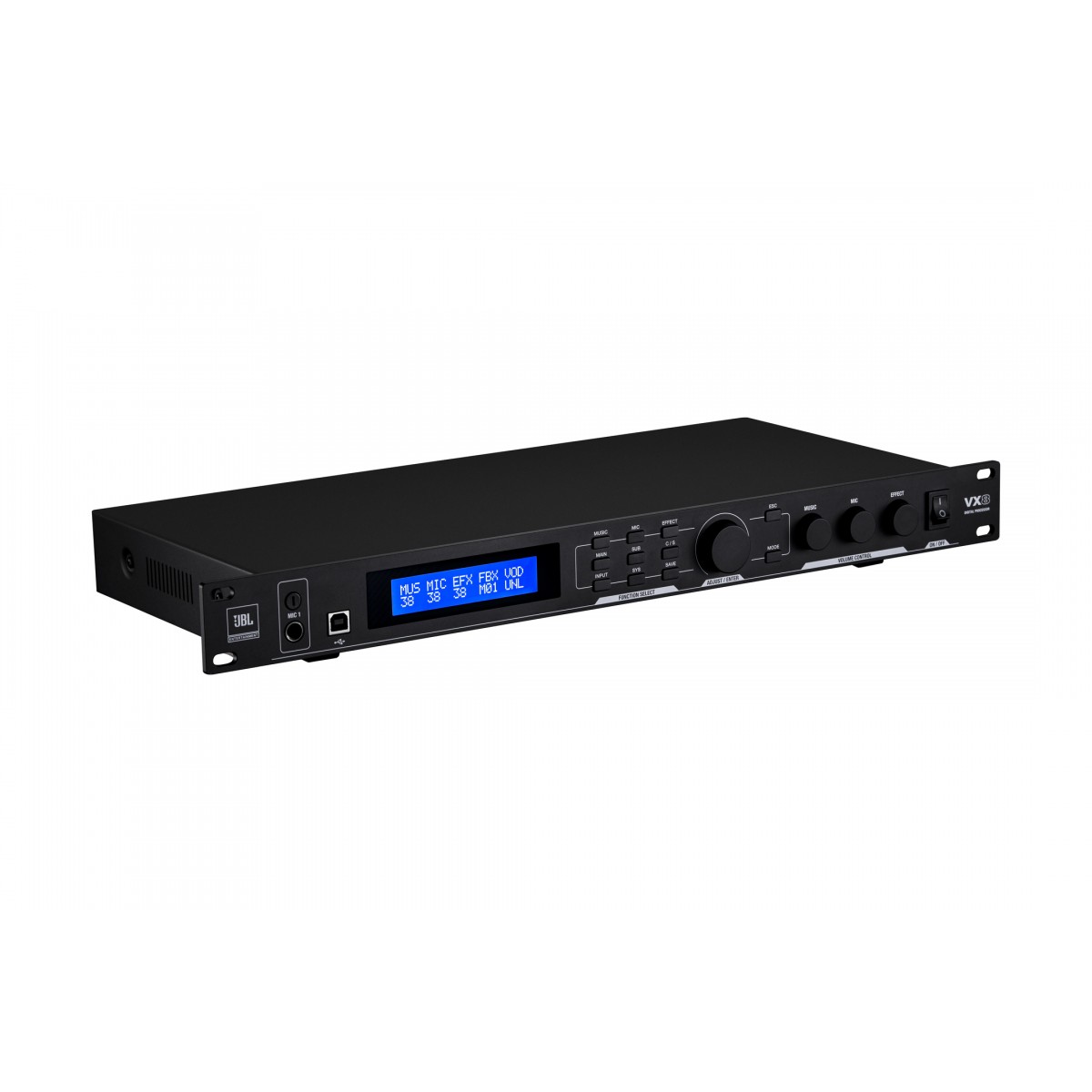

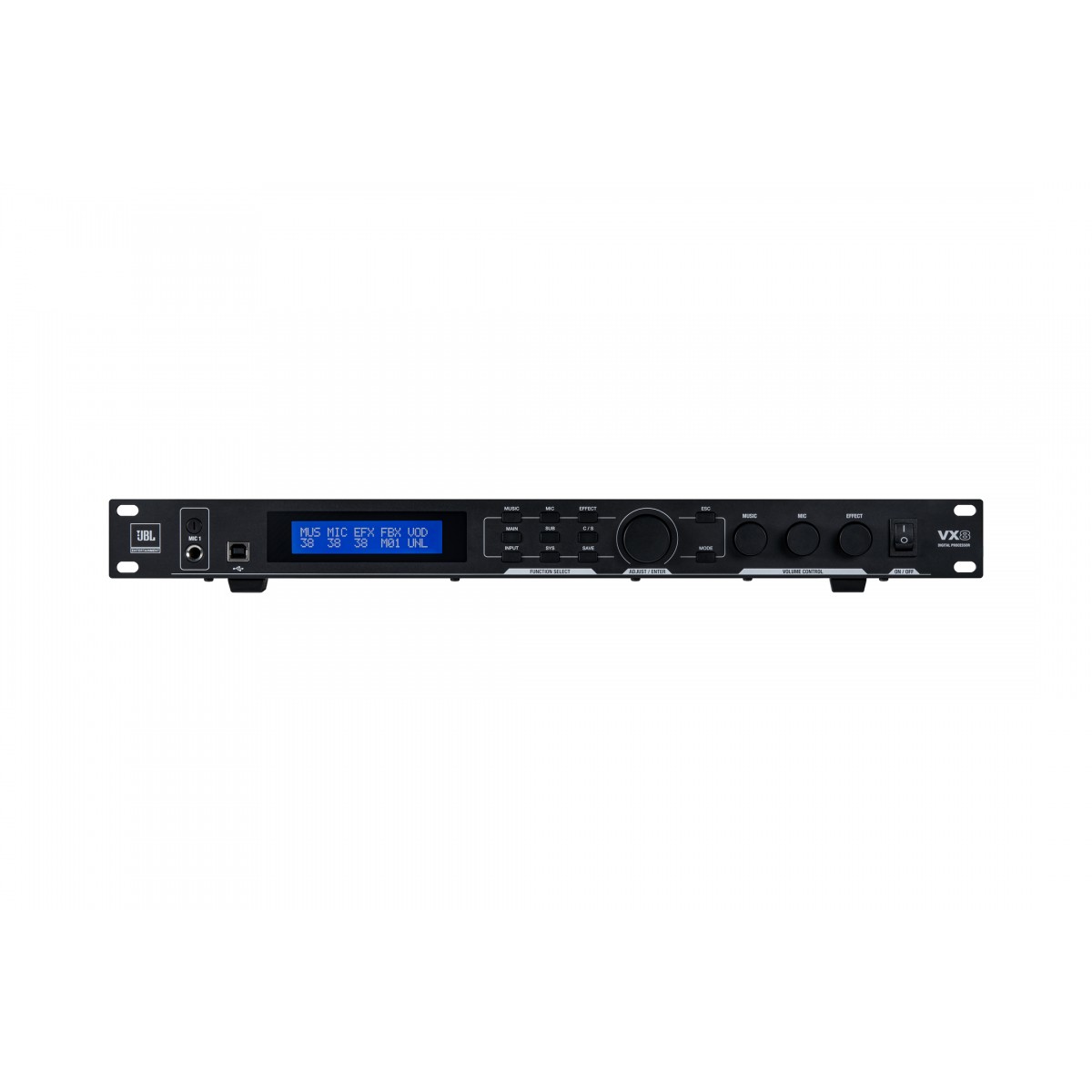

显示 |
Dot matrix LCD |
尺寸 |
482 x 204 x 44 mm |
净重量 |
3.6 Kg |
Mains Voltage | AC 220 V / 50 Hz |
功耗 |
≤ 25 W |
