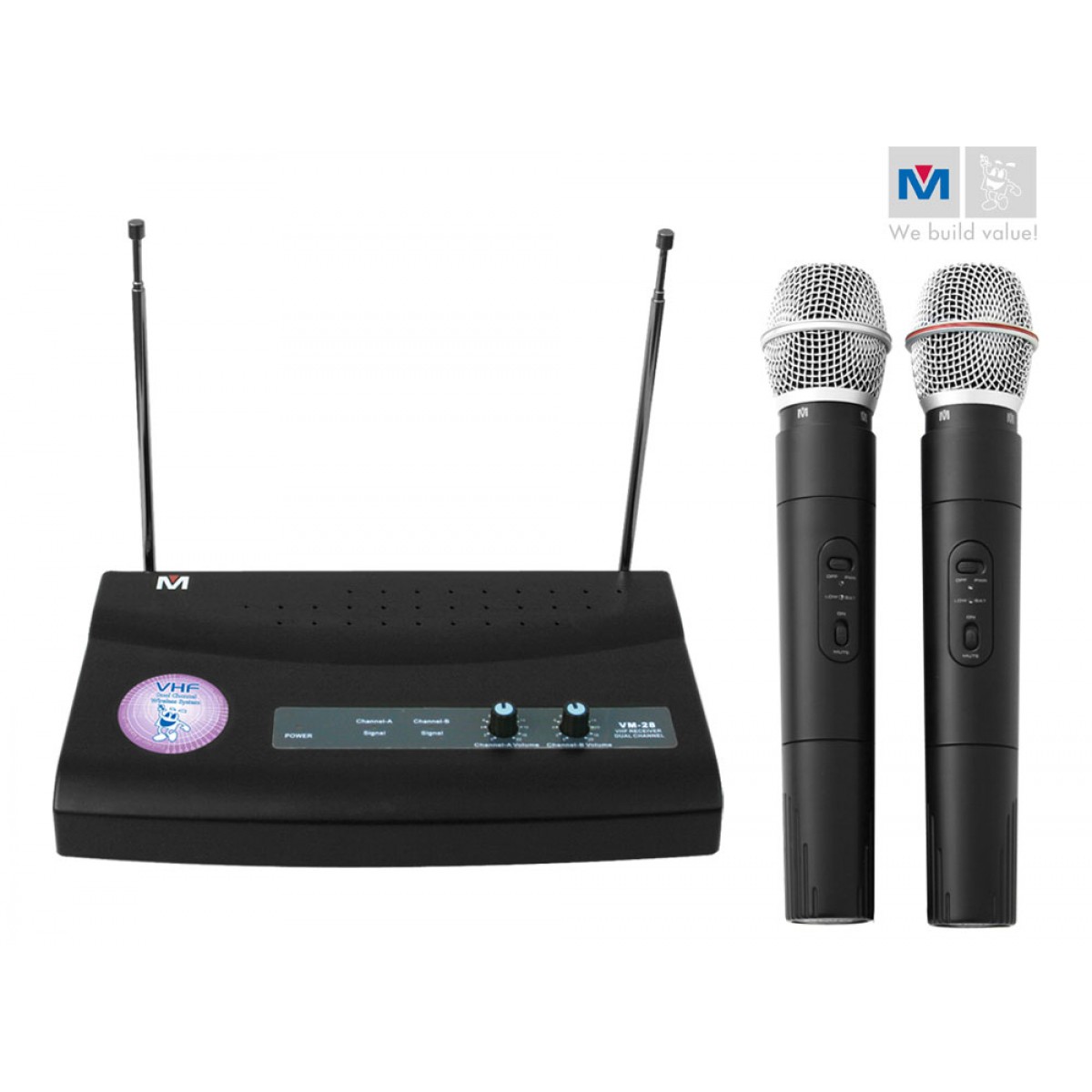

VM-28 DUAL CHANNEL WIRELESS MICROPHONE SYSTEM

FEATURES

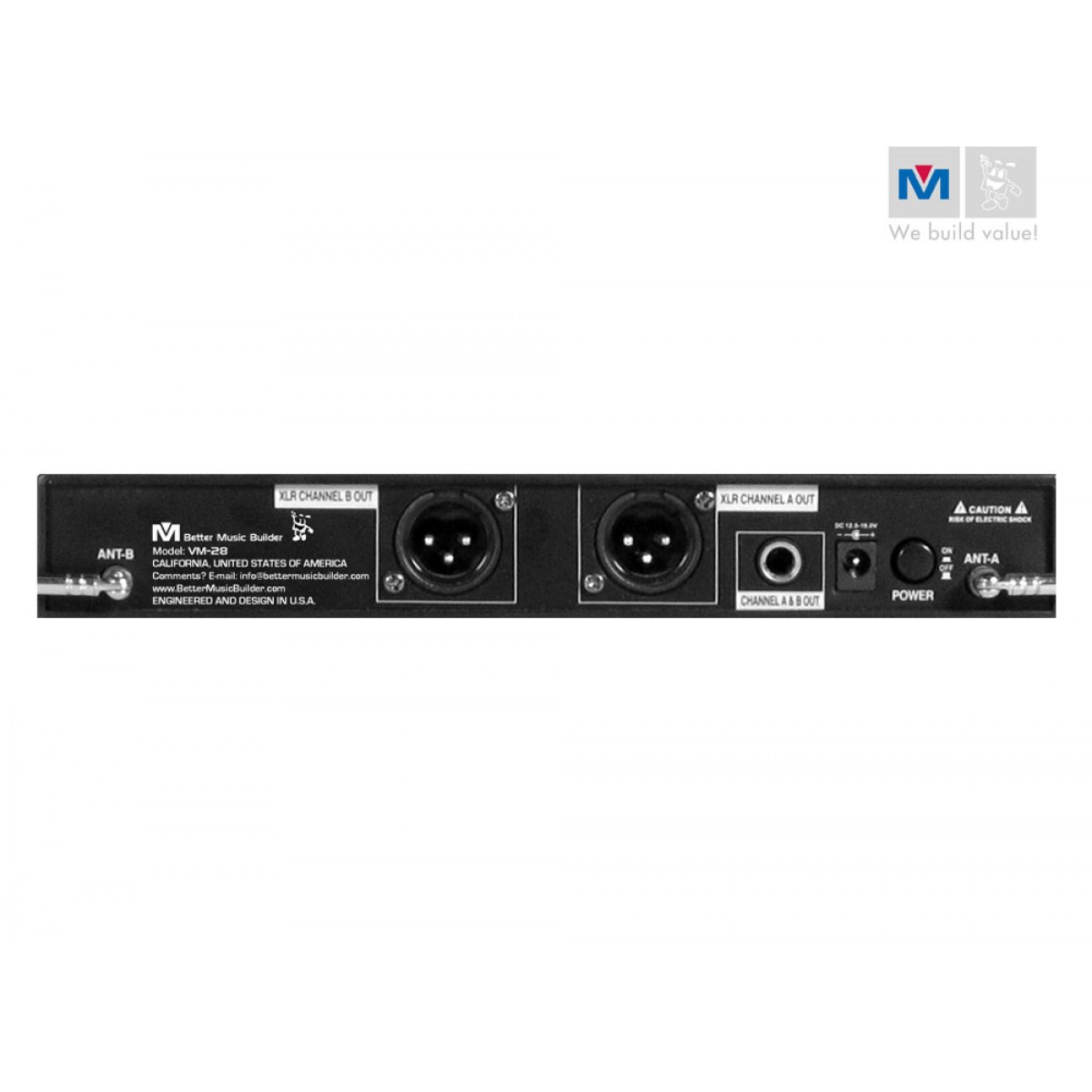

A. 2-IN-1 BASE MODULE

• Channel-A AF volume adjust output jacks +/-15KHz
• Channel-A power
• RF peak indicators (Ch-A)
• AF peak indicators (Ch-A)
• RF peak indicators (Ch-B)
• AF peak indicators (Ch-B)
• Channel-B power
• Channel-B AF volume adjust output jacks +/-15KHz
• Mixed channels 1/4″ unbalance audio output connector
• Mixed channels XLR balance audio output 50Hz~15KHz +/-3dB
• Power switch On/Off
• Docking power supply with removable IEC cable 12.5-18.0 V
• Rugged undirectional dynamic element
• Easily-accessible power switch On/Off
• Low battery indicator
• Transmitter On and Mute switch
• Variable battery cover

B. HANDHELD MICROPHONE

• Battery condition indicator
• ON/OFF switch

TECH SPECS

• RF carrier frequency range: 169.445~221.350 MHz
• Working range: 100ft under typical conditions
• Audio Frequency Response: 50~15,000 Hz, +/- 2dB
• Audio output level: +/- 15 kHz deviation, 1 kHz tone
• 1/4-inch connector (into 3k Ohm load): -8.8 dBV (Hi Z)
• 1/4-inch connector (into 3k Ohm load): -18 dBV (mix)
• RF power output: about 30 mWatt
• Battery size: 9V battery (included)
• Receiver dimensions (WxHxD): 9 x 1 x 5 inches
• Handheld Transmitter Dimensions (WxH): 1.5 x 9.5 inches
• Shipping Weight: 4 lbs
