GDHD Mate424 4 Chanel Professional Power Amplifier (4 x 2400W 8Ohm / 4 x 3300W 4Ohm)

Model: Mate424

4 Channel Output

8Ω：2400W x4

4Ω：3600W x4

2Ω：4080W x4

Digital High Power Amplifier

Other Specification

Frequency response：20Hz-20KHz，-0.5dB(+/-0.5dB)

THD+N：<0.1%

S/N rate：110dB

Damping factor：>500

Crosstalk：≥70dB

Slew rate：>20V/μs

Input sensitivity：0.775V/1.0V

Input impedance (bal/unbal)：20kΩ/10kΩ

Output circuitry：Class D

CoolingAir flow from front to rear

Connector

Input：XLR 3pin-XLR/RCA/TRS

Output：SpeakON Nl4 touch-proof binding posts


Function

Front pane indictorlPower / SIG / clip / Protect indicator

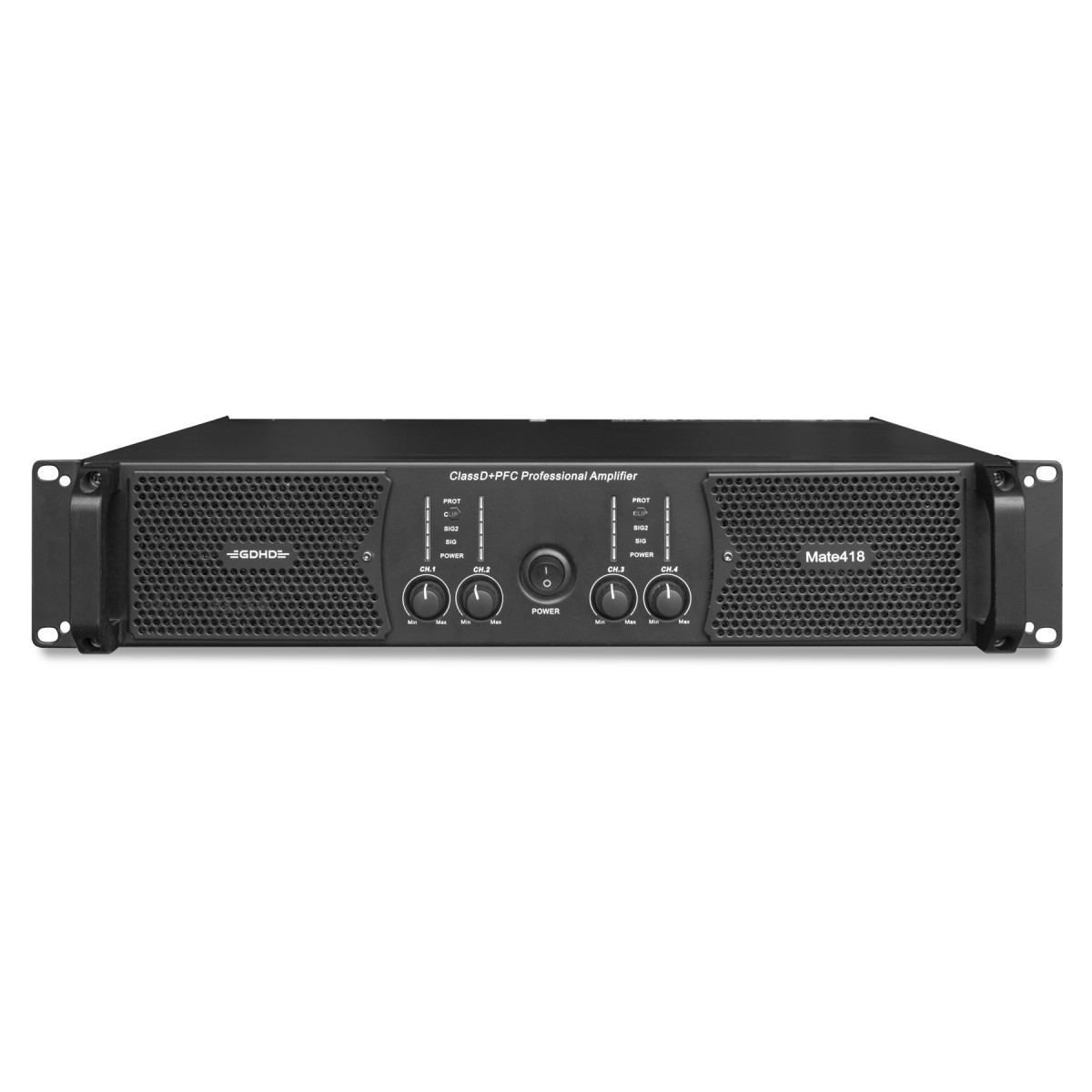

Front panelPower switch / Volume control

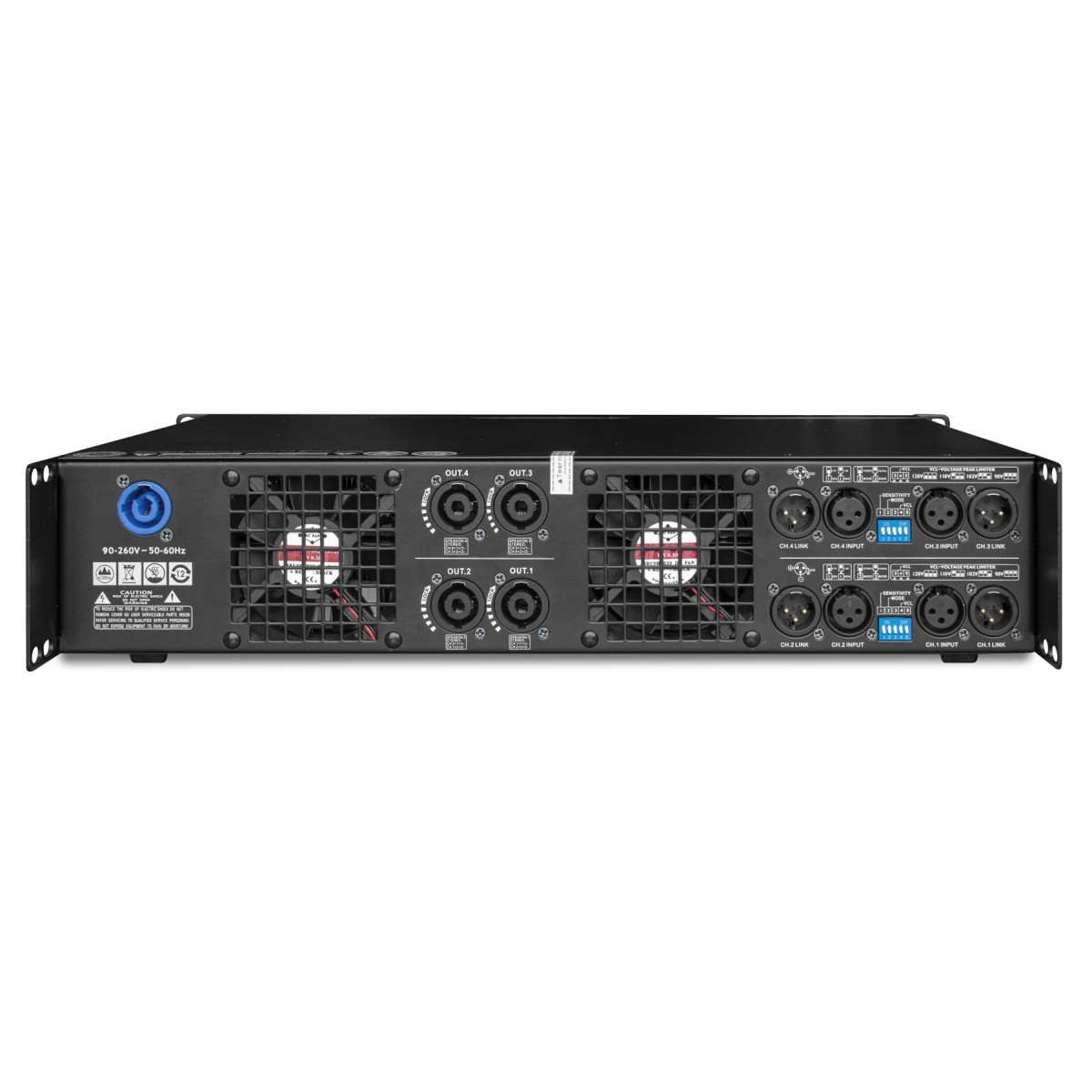

Rear panelOperation mode / Input sensitivity

Dimension/weight

Product dimension(mm)：483x350x88

Packing dimension(mm)：565x550x145

G.W.：14kg

Power：AC90V-220V/50Hz,±10%



Remarks:

1. This power is measured according to the EIA standard.

2. This power is measured using a 40 ms pulsed 1 kHz sine wave at1% total harmonic distortion.
